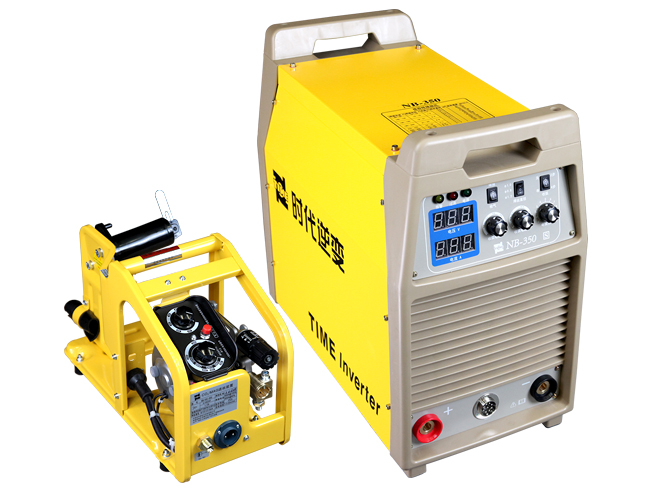

NB-350(A160-350/350T)

Feature code：

Main characteristics:
● Soft-start ignition.
● IGBT inverter.
● 2/4-step welding modes switch.
● Wide range of supply voltage.
● Welding voltage and welding current can be preset and displayed digitally.
● Good dynamic character and real-time wave control during whole process.
●Inching function for wire feeding；
●Welding cable can be lengthened to 30M;The comprehensive cable is 35mm2wire；
●wire feeder is double driven

Notes:
A160-350:Wire feeder double driven and duty cycle 60%
A160-350T:Available spot welding function

Model	NB-350
Company type	A160-350/350T
Rated input voltage(V)	3 phase 380V±10% 50~60Hz
Rated input current(A)	22.5
Rated input power(KW)	16.8
Voltage adjusting range(V)	15~40
No-load voltage(V)	66±5%
Current range(A)	30~350
Wire feeding speed range (m/min)	2~25
Suitable welding wire dia.(mm)	Ф0.8/Ф1.0/Ф1.2(steel)
Welding wire type	Solid/flux-core
Duty cycle （40℃）	35％ / 60％
Efficiency	85％
Power factor	0.93
Insulation grade	F
Case protection grade	IP23
Cooling	Wind
Dimensions (mm)	560×300×530
Weight of power source (kg)	40
Weight of wire-feeder (kg)	13
